Remote Compose looks promising

This post was originally published on the Just Eat Takeaway blog

Just Eat Takeaway (JET) is a global food delivery network handling millions of active users across numerous markets. Operating at this scale requires flexibility on the client side to avoid the natural bottleneck of Play Store rollouts.

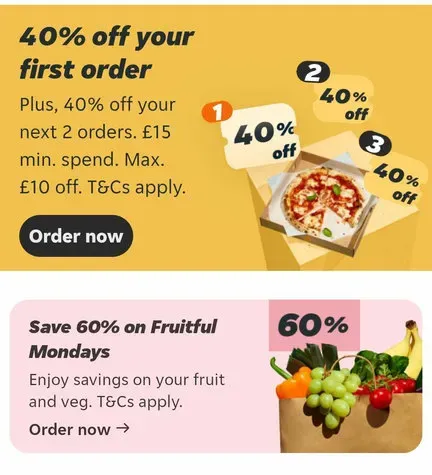

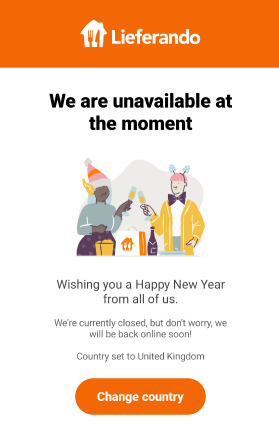

To get around this, we have a fair few UI components that need to change without shipping a release — offer cards, promo banners, offline and holiday screens, random little UI experiments — you get the picture.

Today, these are powered by the typical technologies:

• Some form of server-driven UI
• Branching code paths backed by an in-house feature management SDK
• … and embedded WebViews (HTML/CSS/JS templates within native Webview containers).

While WebViews do work, the downsides are familiar: they don’t quite match a native look and feel, there’s performance overhead, interactions need bridging, and the dev model is different from the rest of the app.

But then Remote Compose came into the picture. For the uninitiated, Remote Compose serializes UI nodes into a binary format that can be sent over the wire and rendered natively.

Granted, it is still in early alpha but it also is very much open source. Why not have a look and see if it could suit the needs of a typical business?

⚠️ At the time of writing, remote compose is on 1.0.0-alpha11 ⚠️

The basics

Remote Compose closely mirrors the current Compose API.

This instantly looks familiar, even if it’s exclusively using remote compose.

Two main conventions:

• .rs/.rdp/.rsp build remote strings, dp, and sp
• hostAction tags a clickable element with a name the host catches later

Generating a document

Let’s start with a naive implementation, then ramp up to something that will hopefully be close to production level.

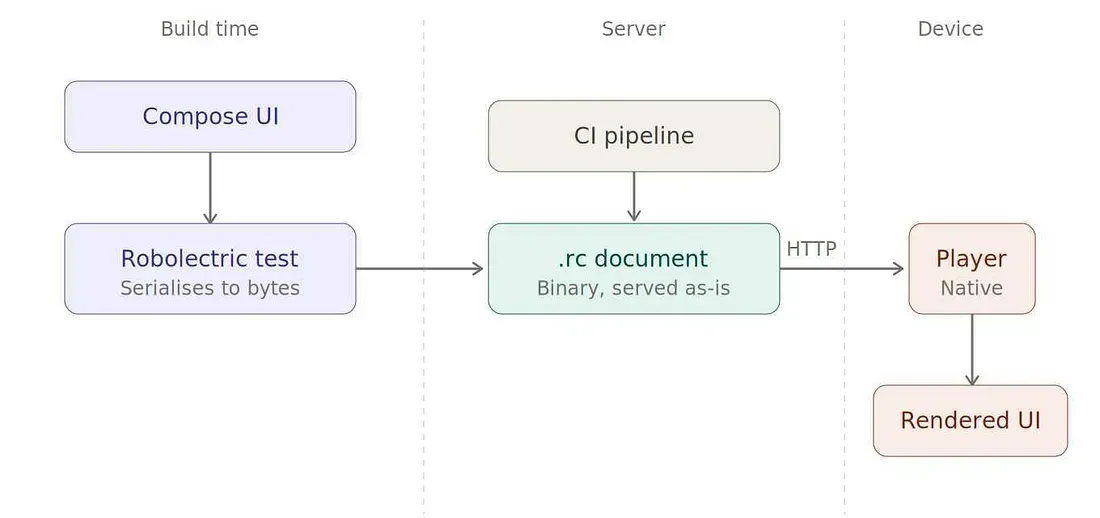

The POC has two halves: a Robolectric test that generates the document, and an app that renders it.

The test runs the composition and writes the bytes; the file is served as-is to whoever requests the URL.

Rendering

First, we need to load the actual document from a remote URL — I’m sure using plain java.net.URL will not be controversial.

Then pass that variable into the RemoteDocumentPlayer. From there, we can catch that claim_offer action by name in onNamedAction:

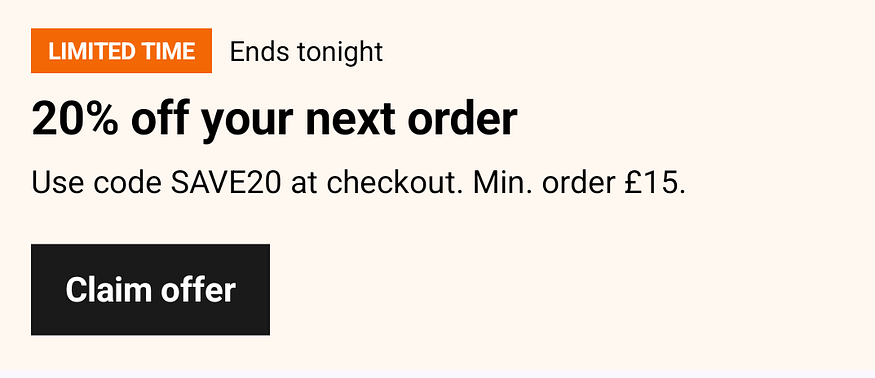

The result itself is already not too bad.

Getting fast iterations

One of the biggest benefits of working with Compose is the fast dev/debug loop cycles via @Preview.

Here, it's RemoteDocumentPreview instead. The generated documents can always be loaded manually. 👷

Or we can just load these files over HTTP. push → GitHub Action runs the generator tests → .rc files land on gh-pages → served at a stable URL.

Locally, spinning up a local server via python -m http.server 8080 --directory output gives the same thing.

Implementing a design system

At JET, we have our own design system called PIE. Think of it like our own version of Material.

To that end, an internal Android library of ready-made foundational components (buttons, cards, tags, typography) is provided, that every dev drops in without ever thinking about styling.

The problem is that this library emits standard Compose nodes the serializer will never understand. Since the design system exposes the tokens themselves, we can mirror them as constants and rebuild a few of the components we need as thin wrappers over the Remote Compose API.

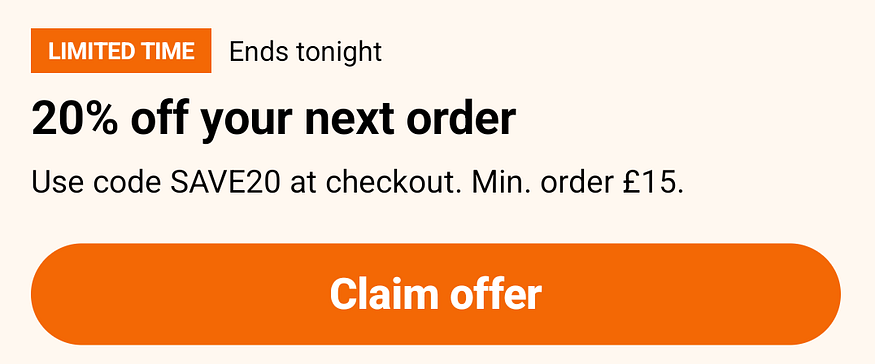

Now the button looks almost identical to the primary buttons provided by the PIE android library.

What about fonts?

Custom fonts aren’t easily reachable from the Compose API currently. No matter what we tried, we could not make them load properly.

The Compose player only matches a font name against /system/fonts/, so an app-bundled resource font is never found.

The path that is capable of supporting custom fonts is only reachable via the raw RemoteComposeWriter/ RcPaint canvas DSL, which bypasses the Compose layer entirely. (for now)

Viewport size doesn’t matter?

We rendered the same document captured at five viewport sizes (from half a phone to a tablet) on one device.

They all looked identical in the end, which, looking at the source code, seems to be by design.

The player re-measures the layout tree against its own Canvas size before every paint. The capture-time width/height only affect the composition phase, e.g. initial text wrapping.

Density is confusing

While a document is recorded with a set density, there is also the option of passing RemoteDensity.Host inside captureSingleRemoteDocument:

This encodes conversions as runtime expressions against the player’s density, instead of constants.

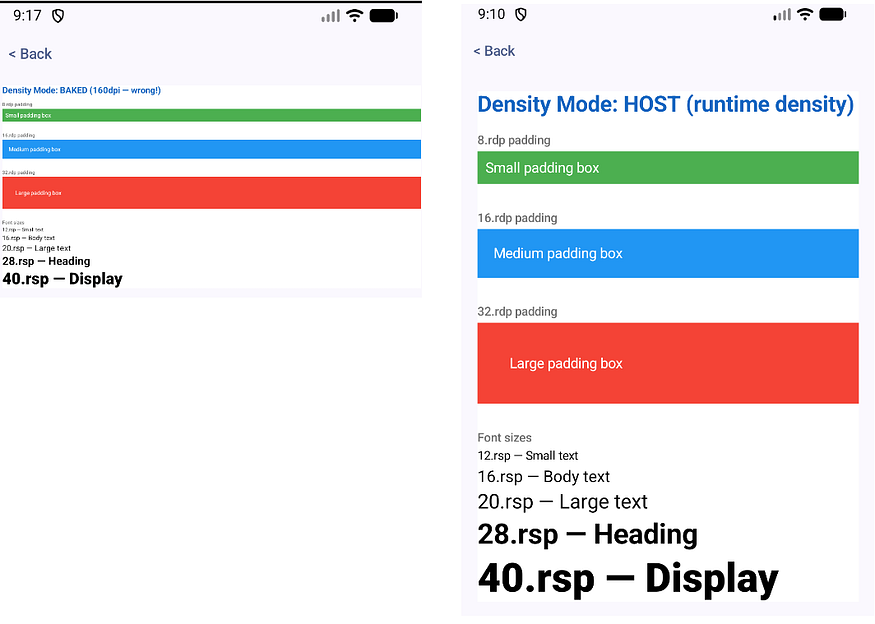

Let’s try an experiment. Record a document with 160 dpi baked-in density, and one with RemoteDensity.Host and check the differences.

The baked-in density makes things look way too small on a modern, high density screen, which makes sense I guess.

While RemoteDensity.Host looks to be the right call and should probably always be used, I ran into all sorts of crashes with it when making more complex layouts.

It seems only usable for the simplest flat layouts — spacedBy, clip, and RemoteRoundedCornerShape all trigger variants of the same underlying bug where host density variable expressions fail to evaluate. 😥

Careful!

Elevation and shadows are supported but require a bit of extra work.

Unlike standard Compose where Card has a built-in elevation parameter, Remote Compose requires using the graphicsLayer modifier with shadowElevation and a shape to produce shadows:

Theming and localisation

It should be apparent by now that everything in the examples above— colours, strings, images — is baked in at capture time. No runtime theming or localisation.

One way to get around that is by generating a document per variant and letting the client request the right one.

The app requests what it needs (?theme=dark&locale=nl) and the backend returns the matching binary.

This is definitely not pretty, and also introduces many variants per document (n themes × n locales).

The other way of working around this is by leveraging Remote Compose state management. For example, using rememberNamedRemoteString , the host can inject a value by name at runtime:

There’s also equivalents for int , float etc.

Try as I might, I could not get this to work properly unfortunately. The text was never updated successfully. I assume this will be fixed down the line as it’s still early days. 🫡

Animation comes for free

The binary can encode time-based expressions the player evaluates per frame — so a static .rc file can animate.

For us that means animated offer cards — pulsing highlights, countdowns, progress — with no app code changes.

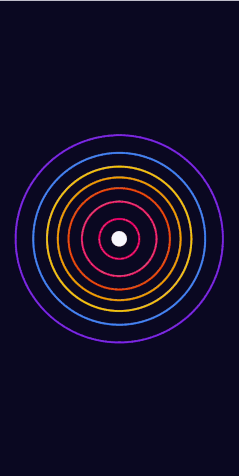

The sky seems to be the limit here. I can imagine plenty of creative usages down the line, like this one for example:

Images

Most images can be converted to bitmaps and embedded straight into the binary:

As for URL images; they seem broken in the current alpha. rememberNamedRemoteBitmap(name, url) declares 1x1 dimensions internally, so the player throws "dimensions don't match".

Going further

The logical conclusion to all this is that we can even provide full-screen components.

While I’m not convinced this will ever be a good idea, fully replicating entire layouts in Remote Compose looks highly feasible in the future when the API is more stable.

What works well

• Native performance — Compose Canvas directly, no WebView overhead.
• Design system fidelity — colours, spacing, shapes reproduce cleanly
• Server-driven updates — new UI with no release.
• Animation & interaction — time expressions and hostAction both work well.
• Testability — documents come out of unit tests.

Questionable

• Adaptive layout — RemoteDensity.Host + the player's re-measure mean one file should fit any density and size, but it’s still tricky to figure out how it all works in combination with modifiers.
• URL images seem broken
• No custom fonts via the Compose API — brand fonts need the lower-level writer.
• Limited primitives — Column/Row/Box only; no LazyColumn or other cool stuff
• Alpha — unstable API, @RestrictedApi everywhere; accessibility unproven.

And the elephant in the room: no multiplatform support. 🐘

All this is Android only. As-is, that’s the biggest blocker, more than the alpha API or missing features.

Multiplatform support has been mentioned on the Kotlin Slack channel, but for now, the library is just too early in its lifecycle.

Wrap up

As the title suggests, this all looks quite promising. If you are interested, there is also a great presentation on Youtube from the creators of Remote Compose @ Google.

Looking forward to future updates with a stable API, some nice docs and hopefully multi-platform support. We will definitely give it a go in production when things settle.
